Turnaround & shutdown, call-off maintenance, asset integrity, corrosion protection, surface preparation & coating, mechanical maintenance and emergency repairs — for onshore, offshore, LNG and marine assets.
01
EPC Support Services
Manpower · Materials · Site support
PEC supports EPC contractors and project owners with the people, materials and site services a project needs, from skilled and semi-skilled manpower on site to timely material supply, through construction, commissioning and handover.
PEC offers EPC services through its partner companies.
Manpower on siteMaterial supply
Site support

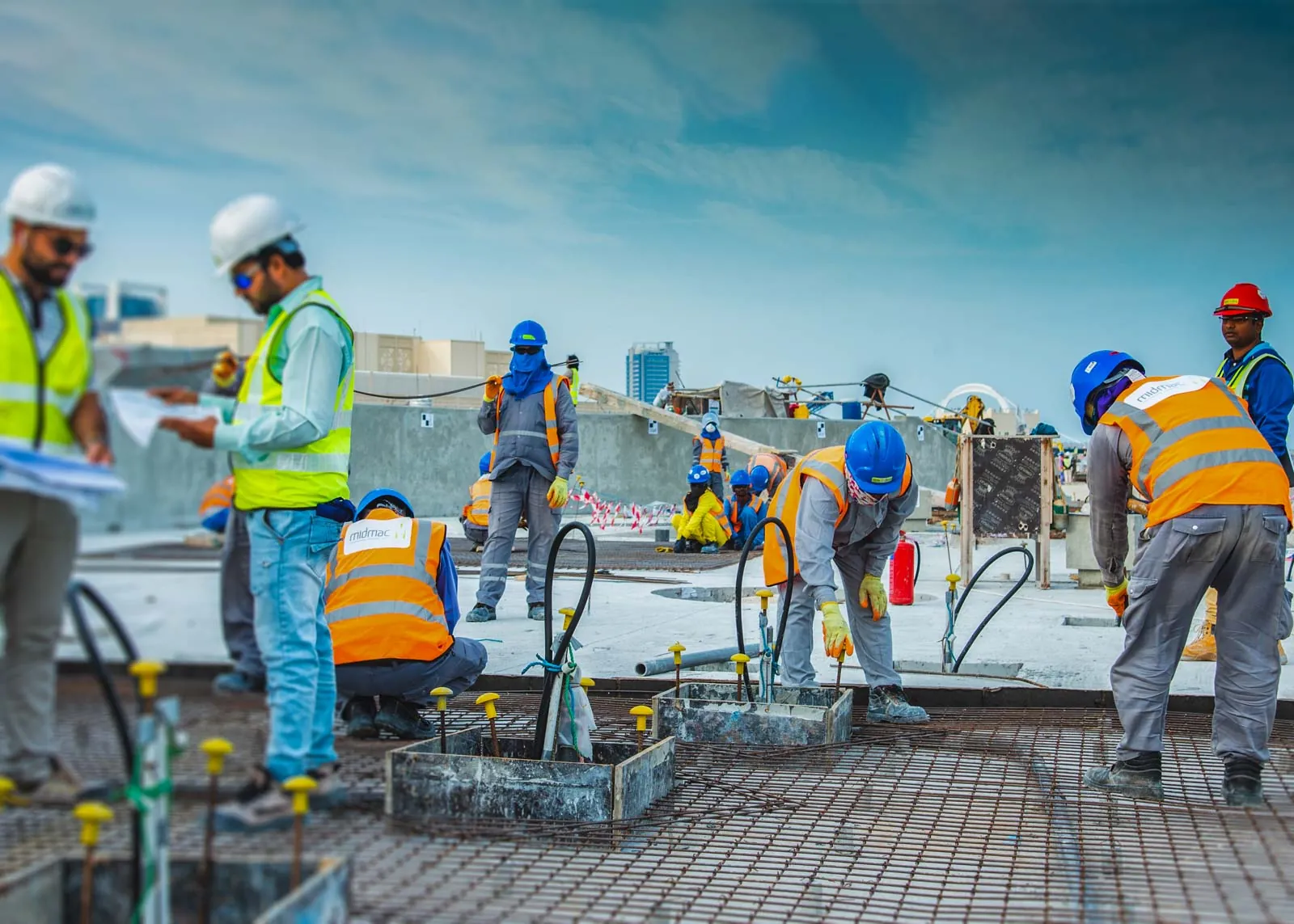

Skilled and semi-skilled manpower supply for site works
Mechanical, piping and coating site works
Construction and industrial equipment rental
Shutdown and turnaround support
Pre-commissioning and commissioning support
Inspection, testing and QA/QC support
Material supply

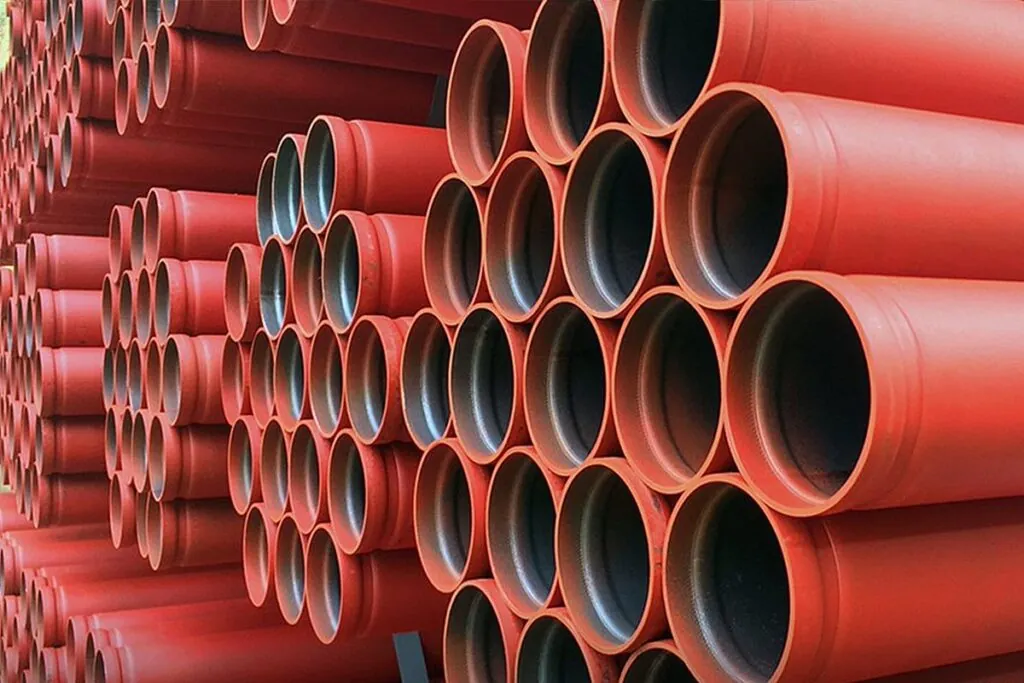

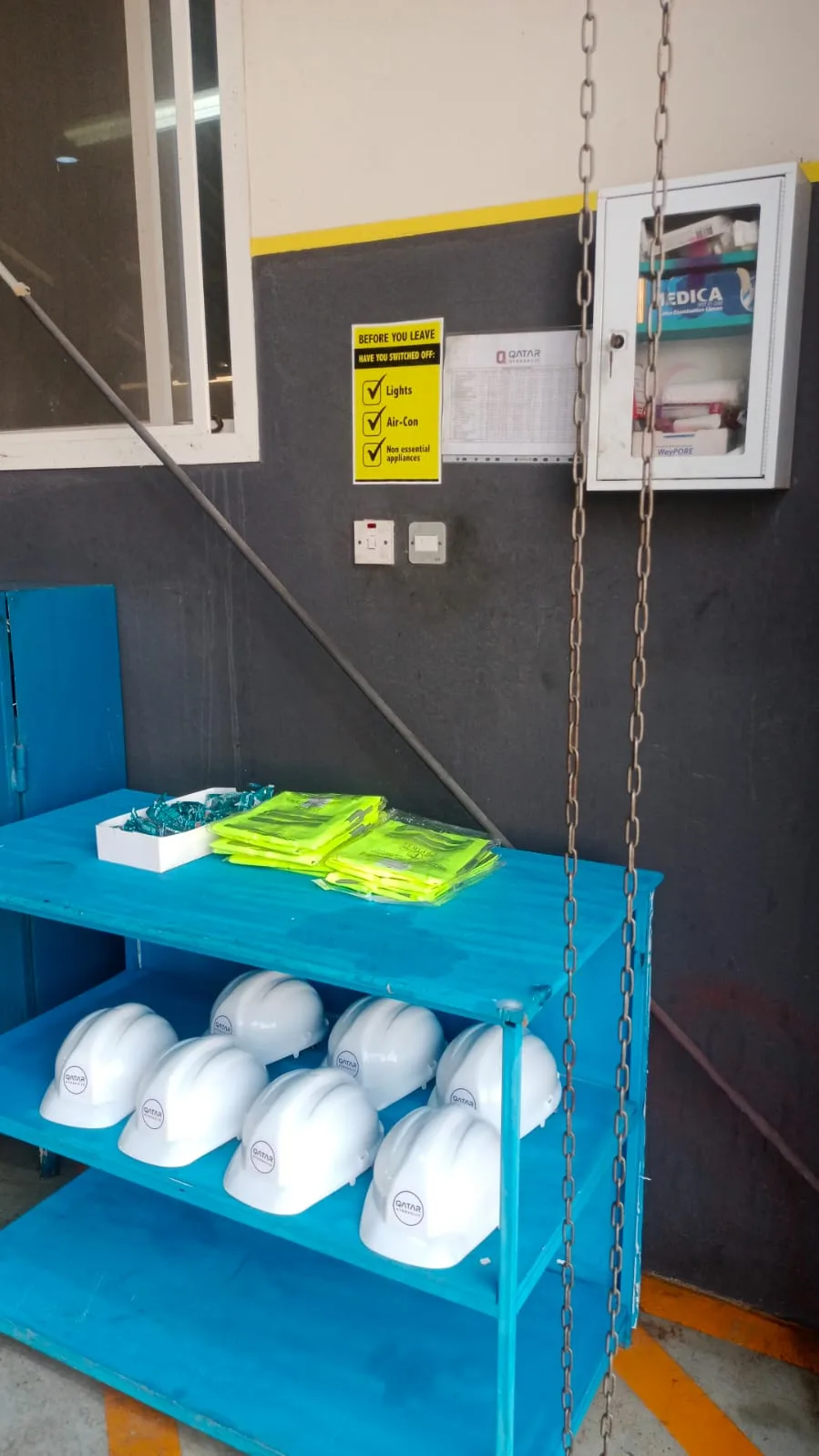

Reliable, timely delivery of steel pipes and fittings, pumps, spare parts, consumables and PPE through a strong vendor network and strict quality control.
Inspection, testing and reliability engineering for enhanced safety and regulatory compliance. Quality checks and NDT testing confirm the steel before anything is sealed in, and every PEC repair is inspected before the asset is handed back to operations.
TestingPressure testingRepair testing

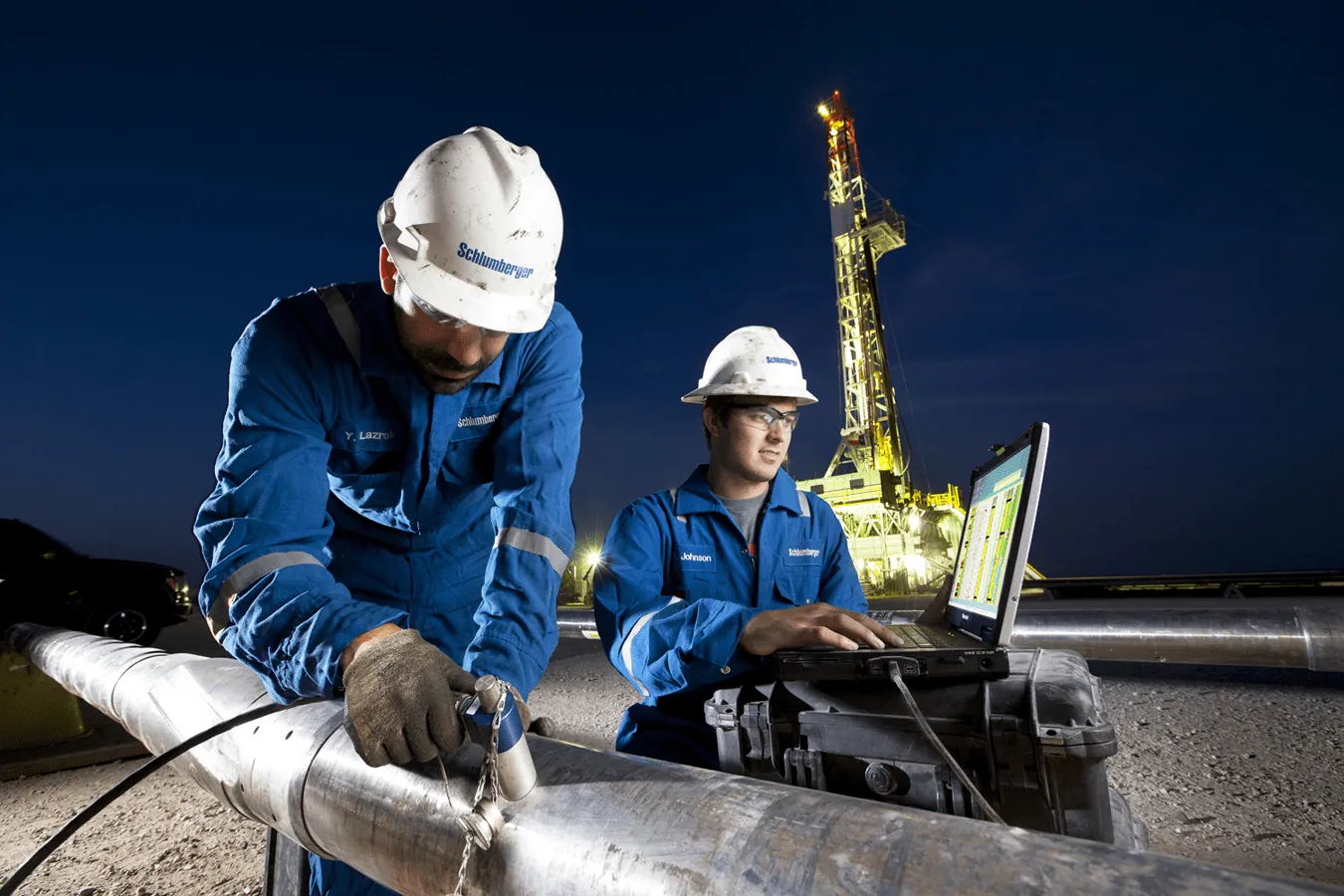

Inspection & testing services
Inspection, testing & reliability engineering
Predictive & condition monitoring
Quality checks and NDT testing after surface preparation, before coating
Inspection, testing and QA/QC for non-metallic systems — GRP, GRE, GRV, HDPE, PE, PP and PVC
Inspection of composite repairs before hand-over
From PEC's project record
Supply and technical support for NDT activities along the MIC GASAL GAN pipeline — GASAL Q.S.C., 2018
Rubber lining inspection on mixed bed vessels, with in-situ rubber lining repair — Q-Chem, 2023
Maintenance services for the oil & gas industry — ensuring asset reliability, safety and operational excellence. A shutdown takes a unit offline for inspection, maintenance and upgrades, and every day of it costs production. PEC plans call-off and turnaround scopes to bring plants back online safely and on schedule.
The first link in PEC's complete downstream maintenance package for oil & gas, LNG facilities and marine assets — turnkey packages rather than just raw material supply.
Integrated downstream service workflow

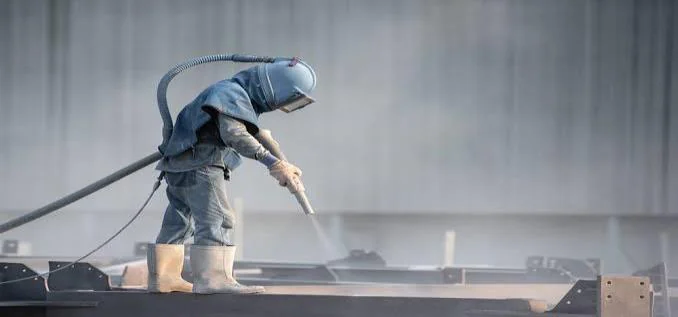

01Water jetting
High-pressure and UHP cleaning
02Surface prep
Substrate prep before coating
03Inspection
Quality check & NDT testing
04ARC coating
Applying protective materials
05Repair & maint.
Long-term asset protection
Application & sector service matrix
Application
Oil & gas / LNG facilities
Marine & LNG carriers
High-pressure water jetting
Process piping, pressure vessels, storage tanks, operational equipment
Substrate preparation before structural painting and protective coating
Severe marine-environment surface prep before epoxy / anti-fouling coatings
Pipe & pipeline cleaning
Process lines, product transport piping, utility lines and manifold systems
Cargo transfer lines, fuel service lines, shipboard ballast / utility piping
05
LNG Infrastructure
With KOGAS-Tech
PEC partners with KOGAS-Tech — a state-owned company and member of KOGAS, leading energy technology in the natural gas sector — across engineering, procurement, construction, commissioning, operation and maintenance of LNG infrastructure.
KOGAS-Tech partnership
17 Jan 2023
MOU signing ceremony
Imperial Holdings, PEC's parent group, and Korea Gas Technology Corporation (KOGAS-Tech) signed a strategic partnership for LNG infrastructure maintenance and hydrogen products.
20 Jun 2023
Signing with KOGAS-Tech & SOOSAN Industries
Imperial Holdings, KOGAS-Tech and SOOSAN Industries signed at the SOOSAN conference room.
MOU signing · Jan 2023Signing ceremony · Jan 2023With SOOSAN · Jun 2023

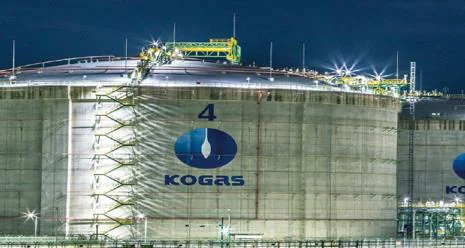

KOGAS
KOGAS in numbers
1993Establishment
5,082 kmNatural gas pipelines
12LNG terminals
2,279Employees
425Natural gas supply stations
104LNG & cryogenic storage tanks
Business scope
Engineering & procurement
LNG storage tanks
Cryogenic storage tanks
LNG terminals & plants
High-pressure gas pipelines
Hydrogen facilities
Ammonia, bio plant
Construction & commissioning
Field engineering
Supervision
Oil & gas processing terminals
Hydrogen facilities
Operation & maintenance
LNG & LPG terminals
High-pressure gas pipelines
Hydrogen facilities
Other oil & gas facilities
Consulting
Feasibility studies
FEED
PMC
06
Manpower & Equipment Rental
Skilled · Semi-skilled · Fleet
Engineers, technicians and specialised staff — carefully selected for safety, efficiency and quality — plus the construction and industrial equipment to support them. Flexible, cost-effective support for smooth operations and successful project execution.
Support across the asset lifecycle
Onshore & offshore operations
Maintenance & call-off contracts
Shutdown & turnaround (TAR)
EPC project support
Equipment & manpower rental
Mechanical, coating & industrial services
Also from PEC
Skilled and semi-skilled manpower supply

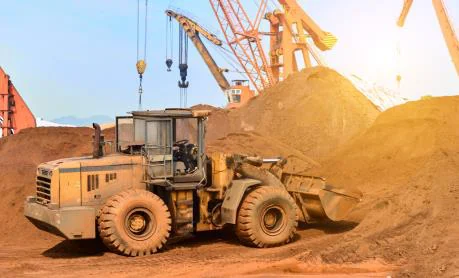

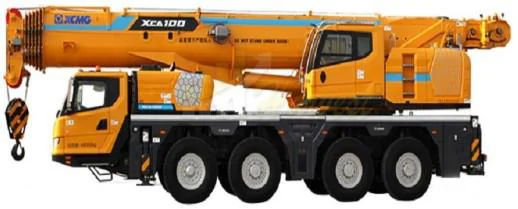

Construction and industrial equipment rental
LNG carrier services — logistics & marine support
Onshore & offshore project support
Steel pipes & structural steel supply
07
Blasting, Painting & Protective Coatings
Protect · Preserve · Extend life

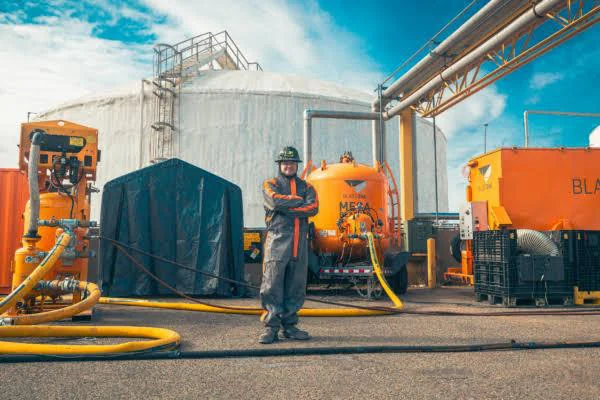

PEC is a specialist in abrasive blasting, surface preparation and high-performance protective coating systems for the oil & gas, LNG, petrochemical and marine industries — delivered by a highly skilled, manufacturer-certified technical team.
Automated & semi-automated internal pipe and girth-weld coating
FBE pipeline applications
FRP chopped strand reinforced coating system
Structural reinforcement, impact resistance and long-term corrosion protection for tanks, vessels, pipelines and critical assets
Specialised
LNG tank blasting & painting
Spherical, bullet and cryogenic tank types — surface preparation and coating to protect, preserve and extend tank life.
Construction & MRO
New-build and maintenance coating
From new construction to in-service rehabilitation works — superior corrosion protection, extended asset life and world-class application quality.
08
Composite Repair & Online Leak Sealing
Onshore · Offshore · Subsea
3X Engineering specialises in pipeline repair, pipe reinforcement and online leak sealing across sectors — and in 2024 became part of the Ekoscan Integrity Group. Through PEC, its repair kits are available and applied for Qatar's installations. For emergency leaks, see EPRS below.
Composite wrappingFIXOKiT® in use
Innovative repair solutions for your installations
TankREINFORCEKiT® PATCHLong-term tank repair
TankSTOPKiT® VESSELOnline leak sealing for tanks
TankTANKiT®Emergency tank repair
PipeREINFORCEKiT® 4DPipe reinforcement
StructureREINFORCEKiT® STRUCTUREStructural repair
PipeROLLERKiT®Pipe / support protection
PipeSTOPKiT®Online leak sealing for pipe
PipeREINFORCEKiT® 1DCoated pipe protection
OffshoreREINFORCEKiT® 4DRiser reinforcement
SubseaREINFORCEKiT® 4D SUBSEASubsea pipe repair
SubseaSTOPKiT® SUBSEASubsea leak sealing
Case history — long-term composite repair for tank & pressure-vessel reinforcement
REINFORCEKiT® PATCH · Dec 2023
Storage tank bottom — pitting corrosion & hole
Bottom of a storage tank reinforced from the inside. Design per API 653 and ASME PCC-2; surface prepared with a Bristle Blaster to a profile above 60 µm, the 30×40 mm hole filled and sealed with a steel plate, then Kevlar® composite patches applied.
REINFORCEKiT® PATCH · Sep 2021
Separator tank — internal corrosion, 12 areas
A 5 m-diameter separator reinforced on twelve internally corroded areas. Hydroblasted surface preparation, roughness verified above 60 µm, then filler and composite patching — designed per API 653 and ASME PCC-2.
Case histories from 3X Engineering project records.
09
EPRS — Emergency Pipeline Repair Systems
Onshore · Offshore · Subsea · With 3X Engineering
When a line leaks, waiting for a shutdown is not an option. EPRS seals the leak online — in minutes, without interrupting operations — and then restores integrity with composite repair designed to ISO 24817 and ASME PCC-2. PEC offers 3X Engineering's EPRS kits — STOPKiT®, STOPKiT® VESSEL and FIXOKiT® — for Qatar's onshore, offshore and subsea installations.

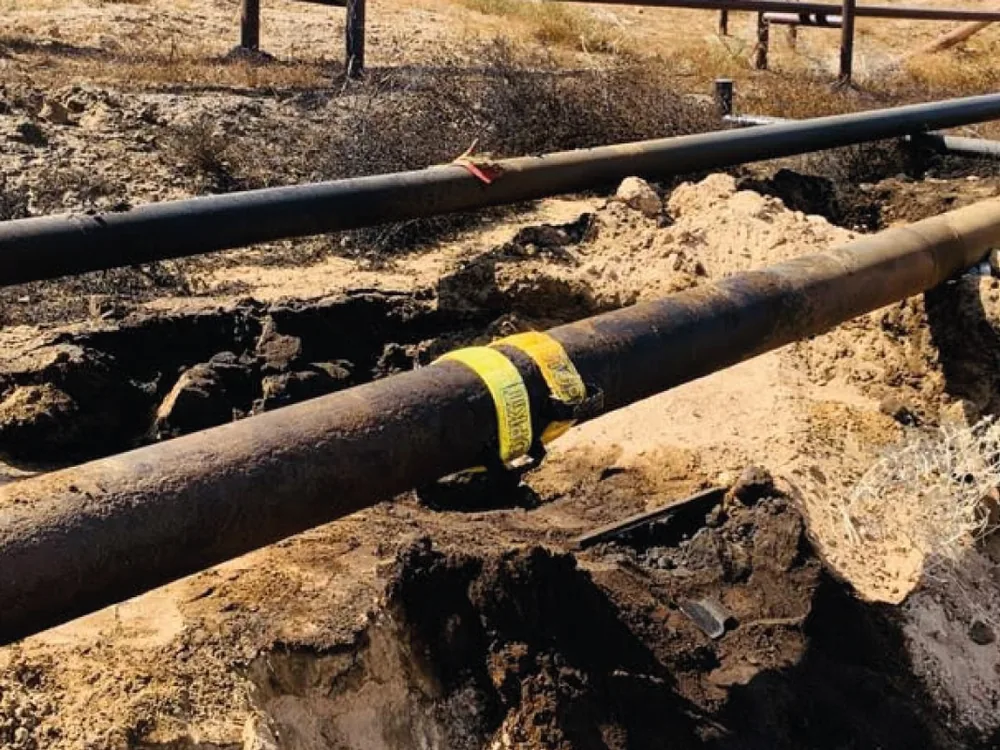

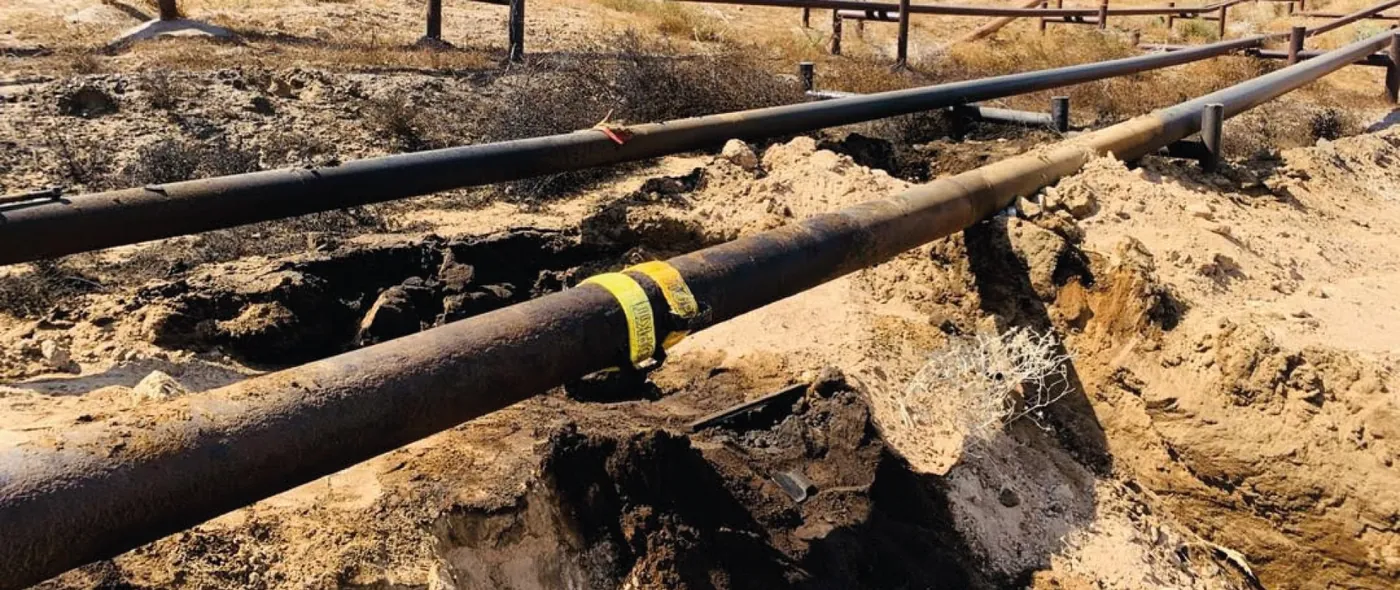

STOPKiT® on a live pipeline
PEC offshore & subsea work
Subsea repairOffshore riser
The EPRS sequence
01Seal online
STOPKiT®, STOPKiT® VESSEL or FIXOKiT® seals the leak while the asset stays in operation — no shutdown.
02Reinforce with composite
Composite repair, designed to ISO 24817 and ASME PCC-2, restores long-term integrity.
03Inspect & hand over
The repair is inspected and the asset is handed back to operations.
EPRS kits — key specifications
Pipes · Online leak sealing

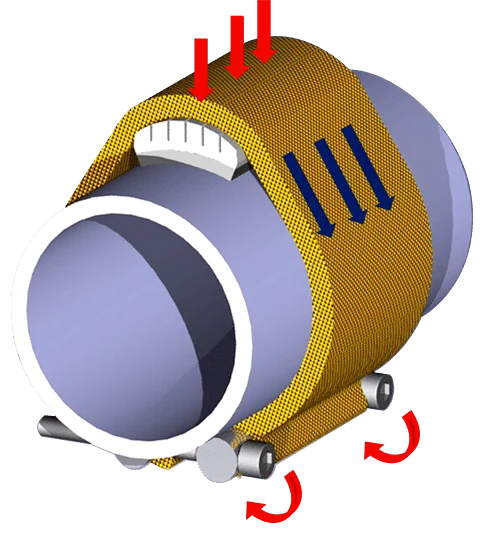

STOPKiT®
Seals a leak online in a few minutes, without interrupting operations — an emergency or temporary repair for oil, gas and water lines.
Pipe diameter
2″ – 56″ — copes with ovality, elbows and weld irregularities
Holes under 25 mm
50 × 100 mm patch — up to 120 bar
Holes up to 50 mm
100 × 100 mm patch — up to 50 bar, depending on pipe diameter and temperature
2″ – 3″ pipes
50 × 50 mm patch — holes up to 20 mm, up to 150 bar
Temperature
−20 °C to +150 °C
Models
Onshore, offshore and subsea
Also
Light, adds no load to the pipe, quick installation, 5-year shelf life, patented
Tanks & pressure vessels

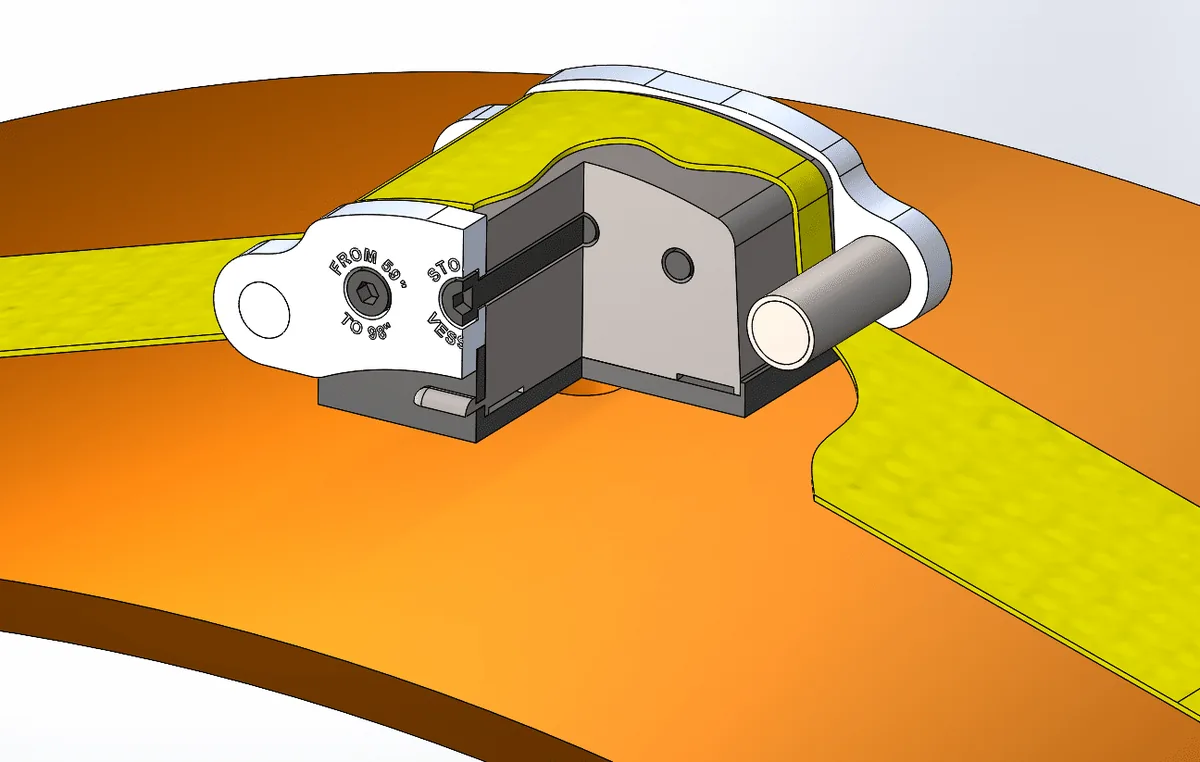

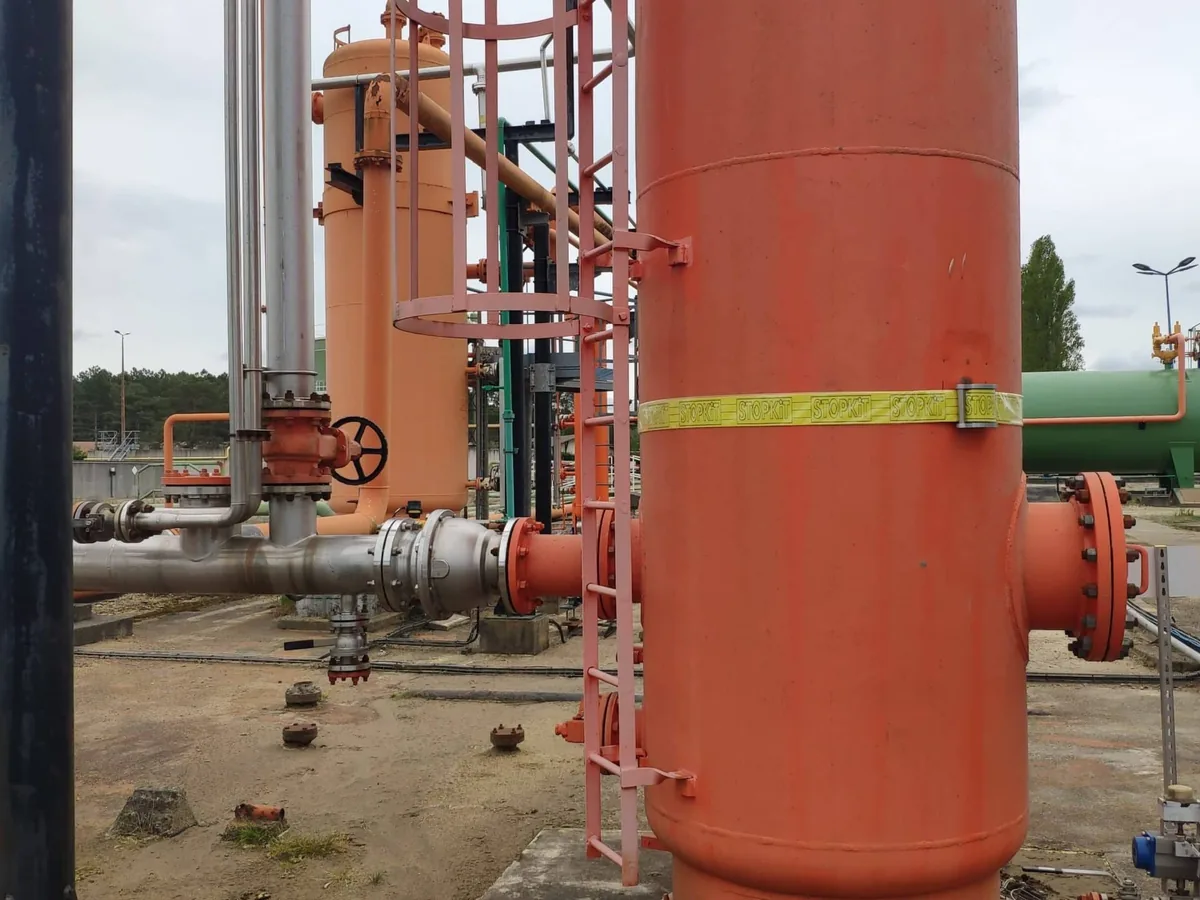

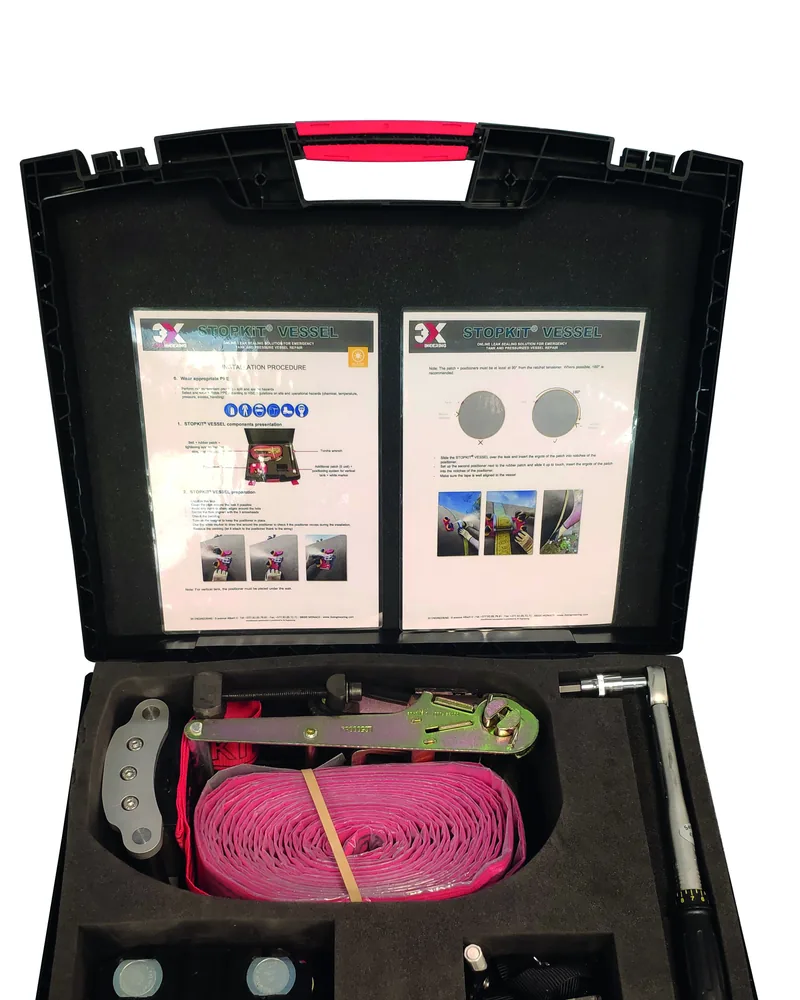

STOPKiT® VESSEL
Online leak sealing for tanks and pressure vessels — sealed by tightening, with no shutdown.
Pressure
Up to 30 bar
Temperature
−20 °C to +80 °C
Vessel diameter
1.5 – 3.5 m (58″ – 138″), vertical or horizontal
Defects
Works over weld wire and corrosion pits
Installation
Under 10 minutes, by 2 people
Also
Reusable, ready to use, easy to store — onshore and offshore
Hole & crack sealing

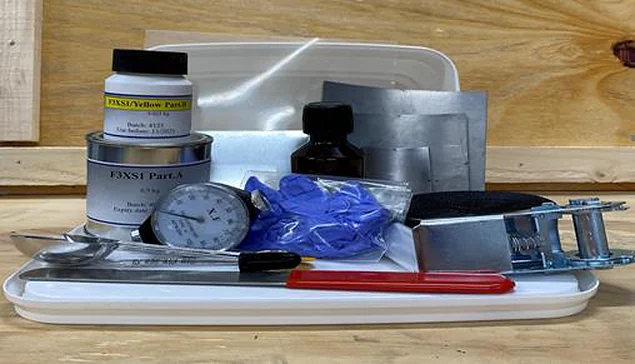

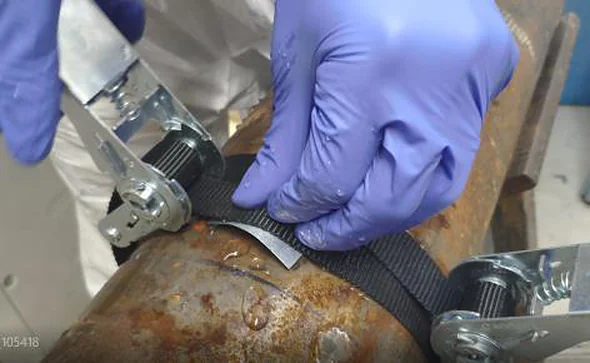

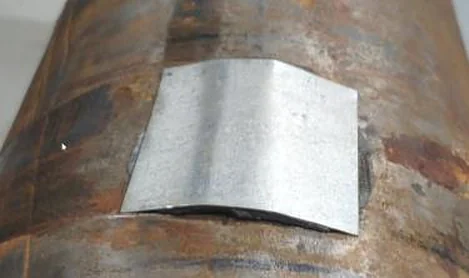

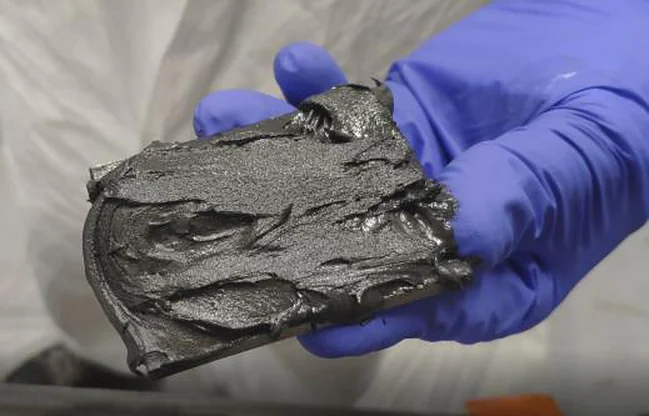

FIXOKiT®
Plugs through-wall defects, with or without residual flow, and prepares them for composite wrapping.
Defect size
Holes up to 50 mm — works over welds and corrosion pits
Fits
Tees, elbows, straight and oval pipe
Media
Liquids (oil, water…) and gases
Next step
Prepares the defect for composite wrapping designed to ISO 24817 and ASME PCC-2
Product data and images: 3X Engineering (3xeng.com).
10
Non-Metallic Systems
GRP · GRE · GRV · HDPE · PE · PP · PVC
PEC's non-metallic division is a solution provider for corrosion-resistant materials — FRP piping, tanks and vessels, composite wrapping (FRP / RTRP / GRP), dual laminate, HDPE, rubber and other piping systems for industrial applications.
Pipe spools
Project reference
Specialist GRE fire water systems for ISND 5.1
GRE fire water & sprinkler lines, pipe size range DN25 to DN150.
Pipeline owners requiring repair, reinforcement or rehabilitation
Maintenance contractors and EPC / EPIC project organisations
11
Fabrication & Mechanical Works
Ras Laffan · Qatar
Small fabrication, machining and maintenance works for QatarEnergy and its contractors across oil, gas and petrochemical facilities — built for fast-response, small-value and short-lead-time requirements.
Fabrication & welding
Our capabilities
Small spool pieces & piping fabrication
Pipe supports, brackets & structural supports
Gratings, handrails & platforms
Structural steel repairs & modifications
Equipment & pipe rack repairs
Small-bore piping & utility fabrication
Precision machining & workshop machining
Shafts, bushes, sleeves, flanges & special components
Pump / valve components & mechanical repairs
Shutdown & maintenance fabrication; site modification, repair & replacement
Target location & clients
Ras Laffan Industrial City — operating plants, maintenance and shutdown areas. QatarEnergy, Q-Chem, QatarEnergy LNG, QAFCO, QAPCO and other operating facilities.
JV company advantage
Fabrication + machining + mechanical repair + site support — integrated capability through our JV companies.
Our focus
01Small works
Scoped requests, no minimum size.
02Quick quotation
Fast technical and commercial reply.
03Local / JV fabrication
Fabrication & machining in Qatar.
04Fast delivery
Short lead times to site.
05Site support
Fit-up, installation and repair.

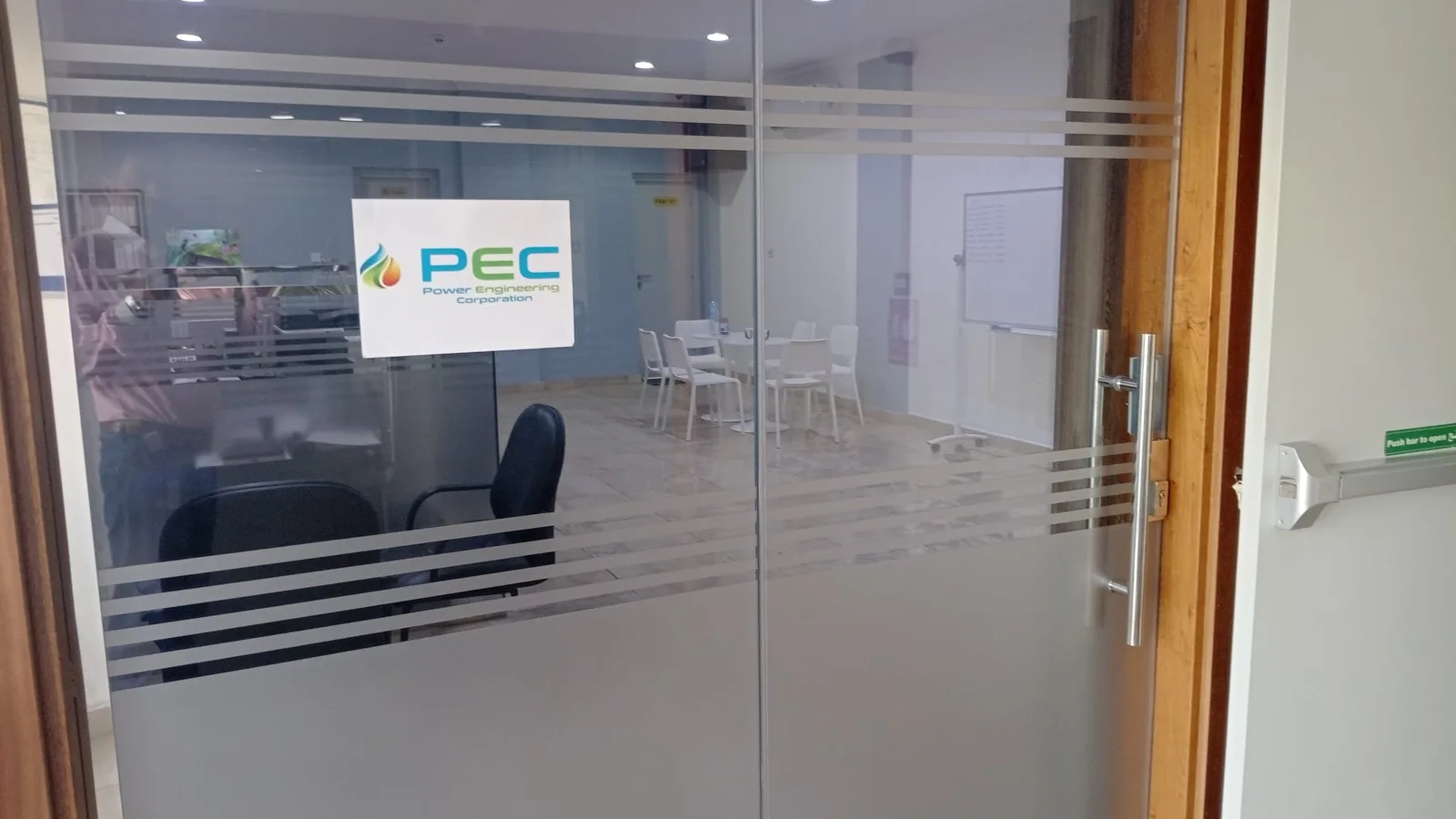

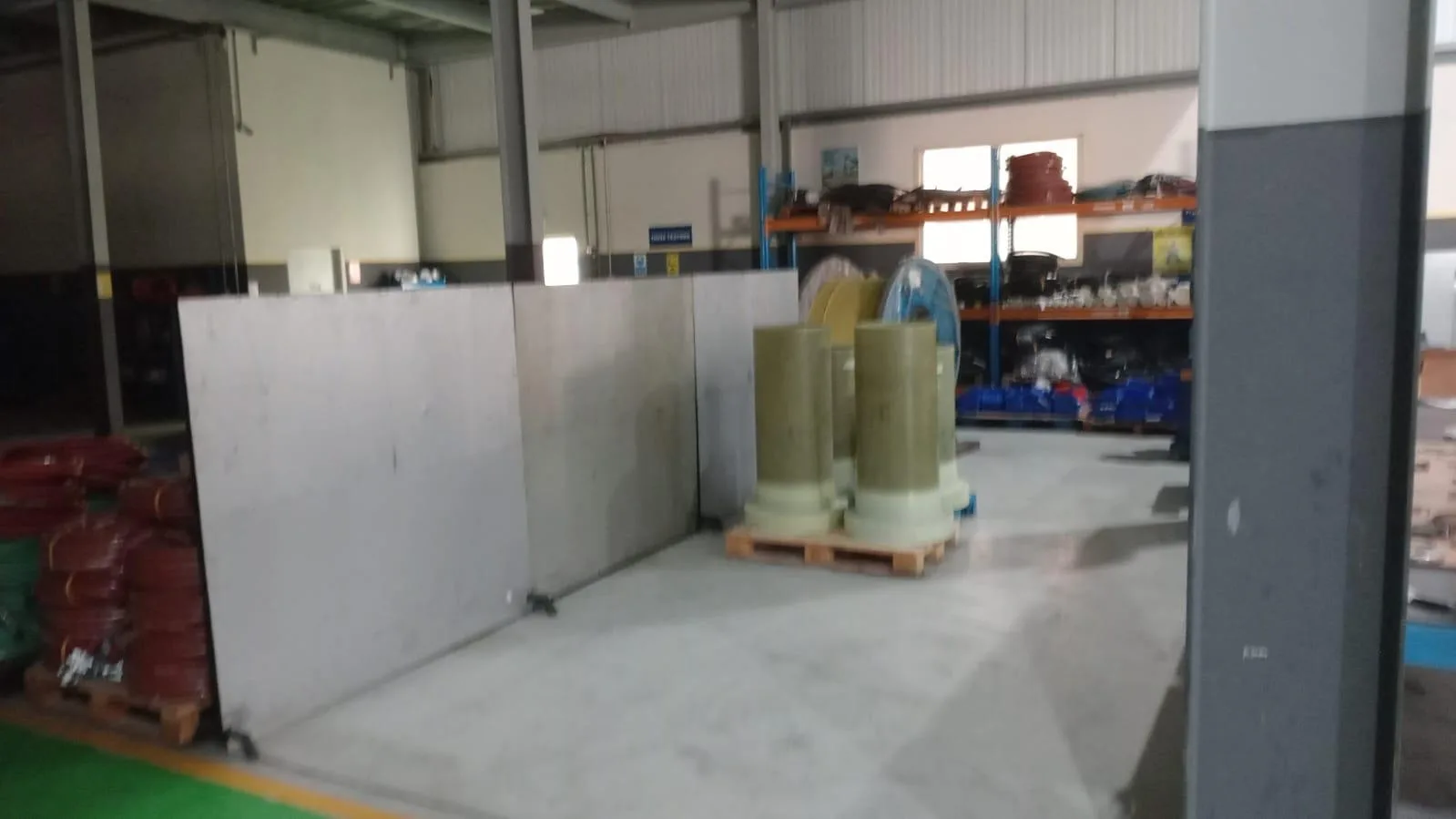

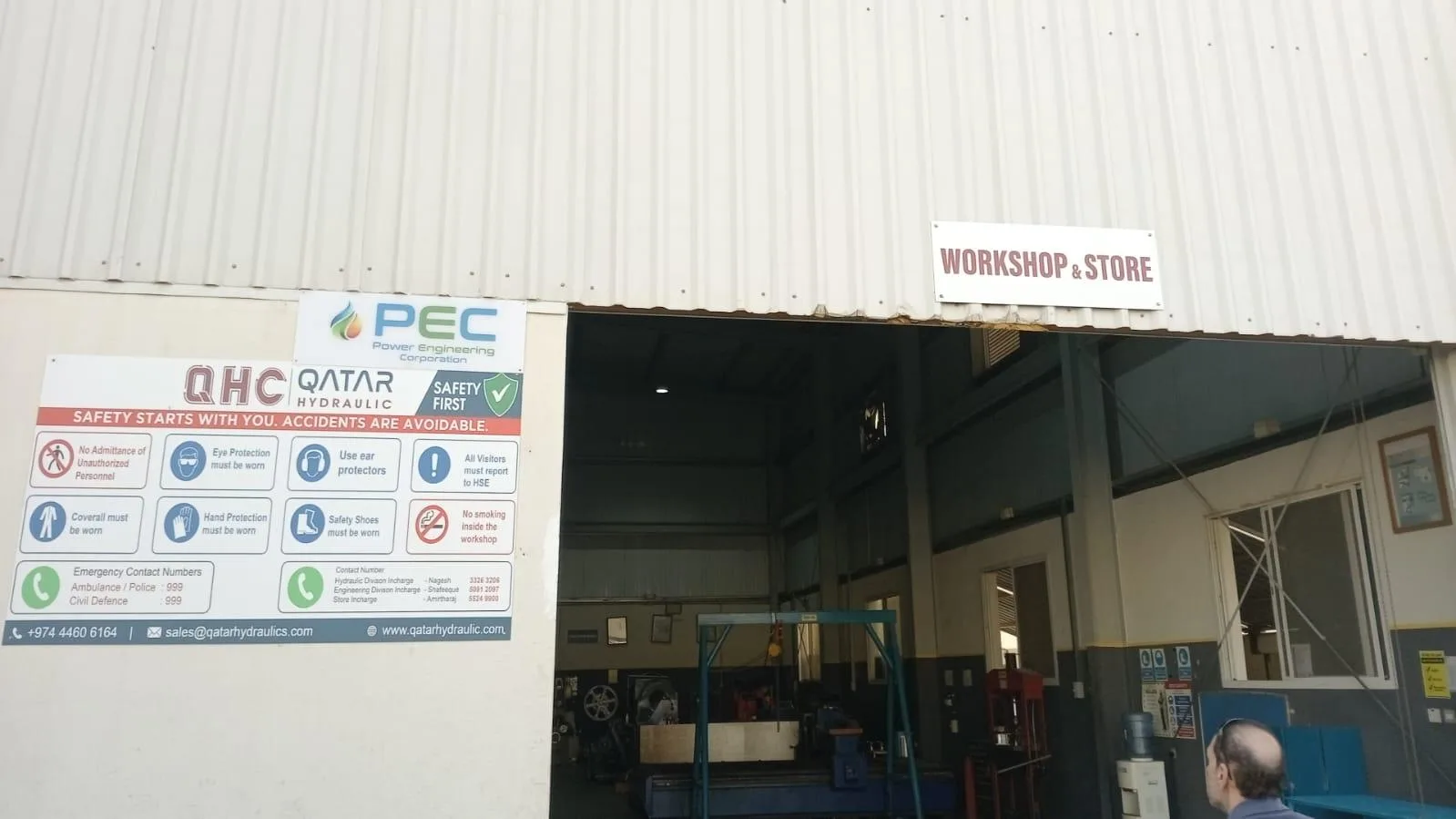

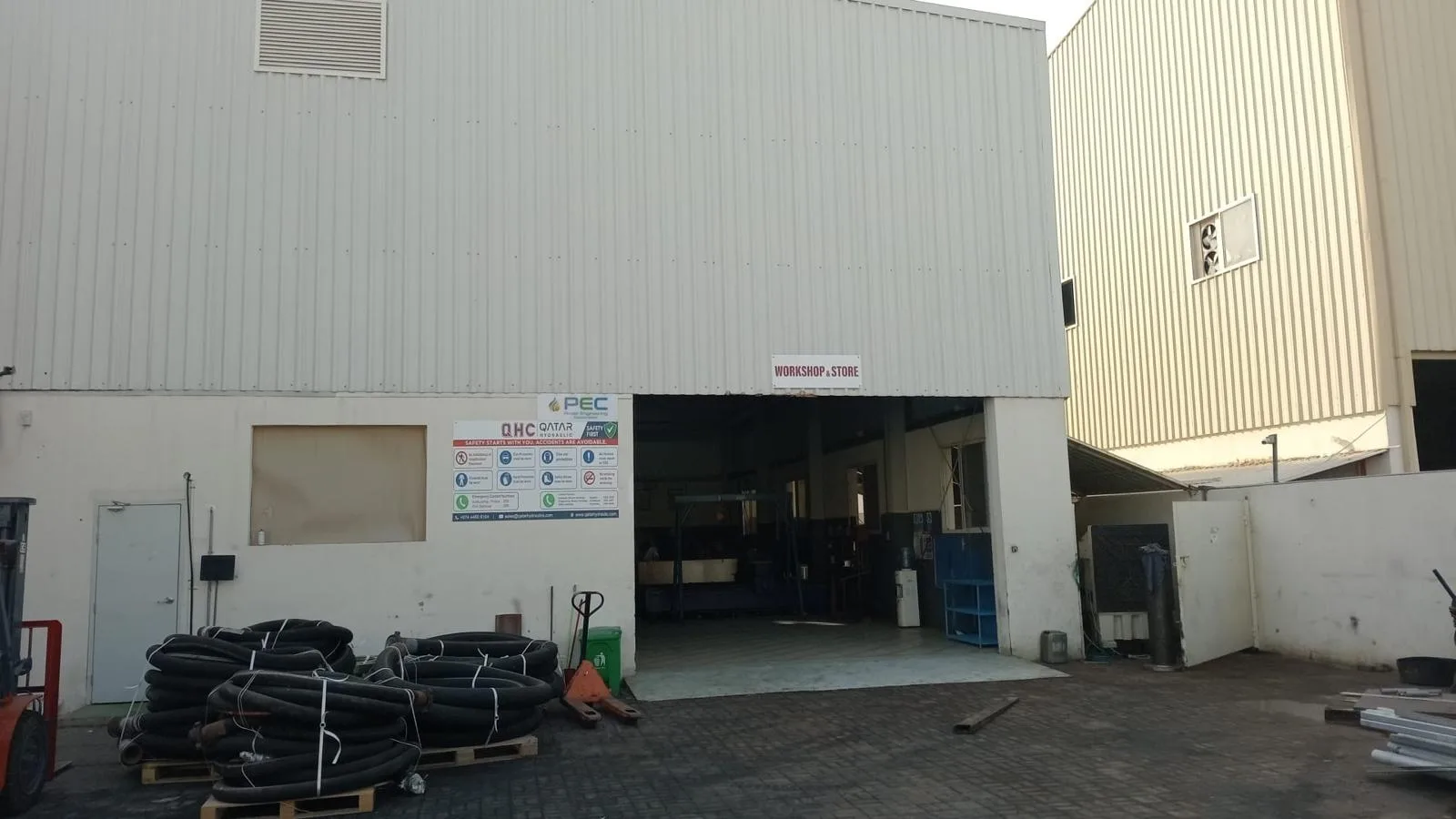

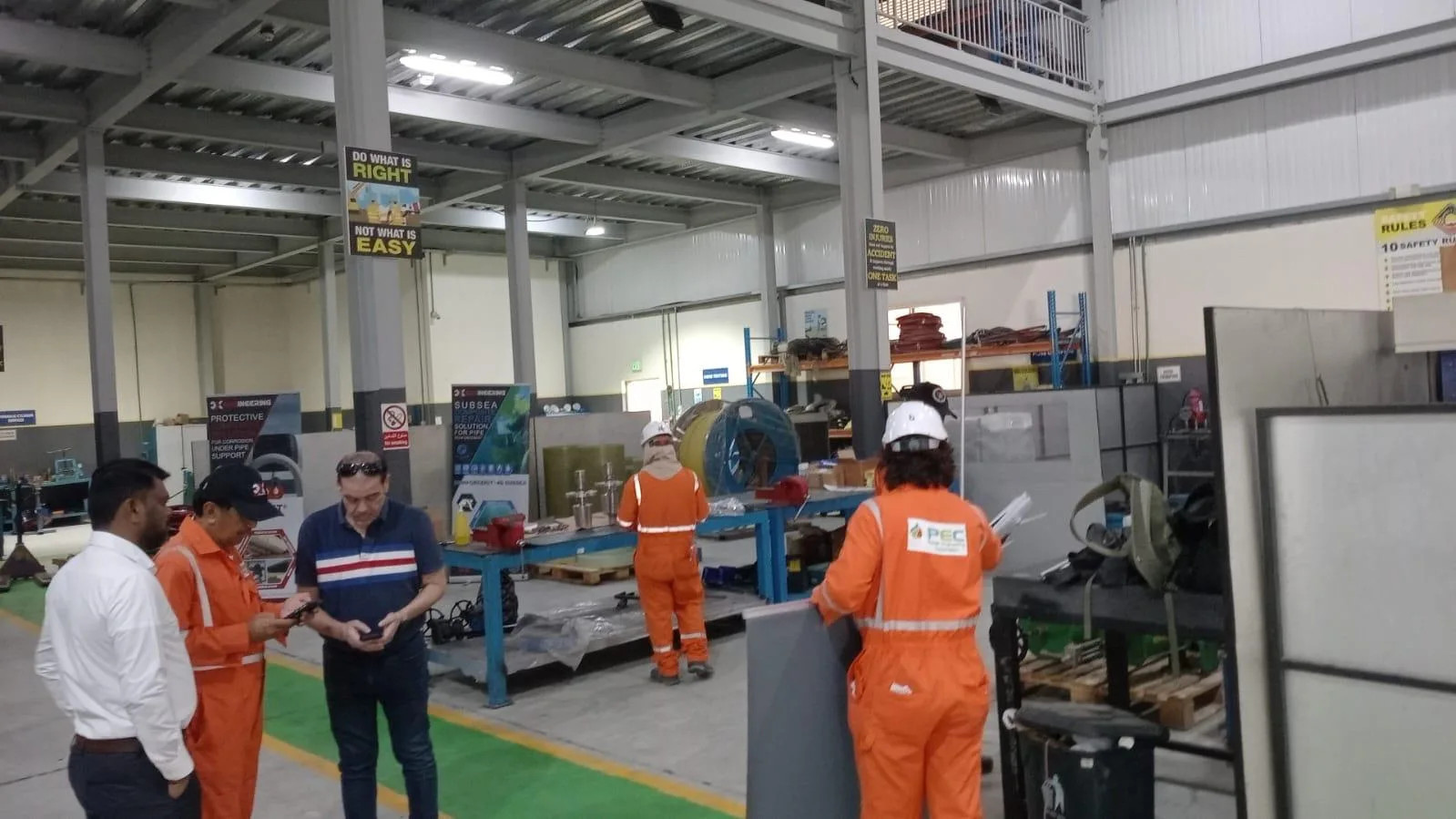

Our workshop

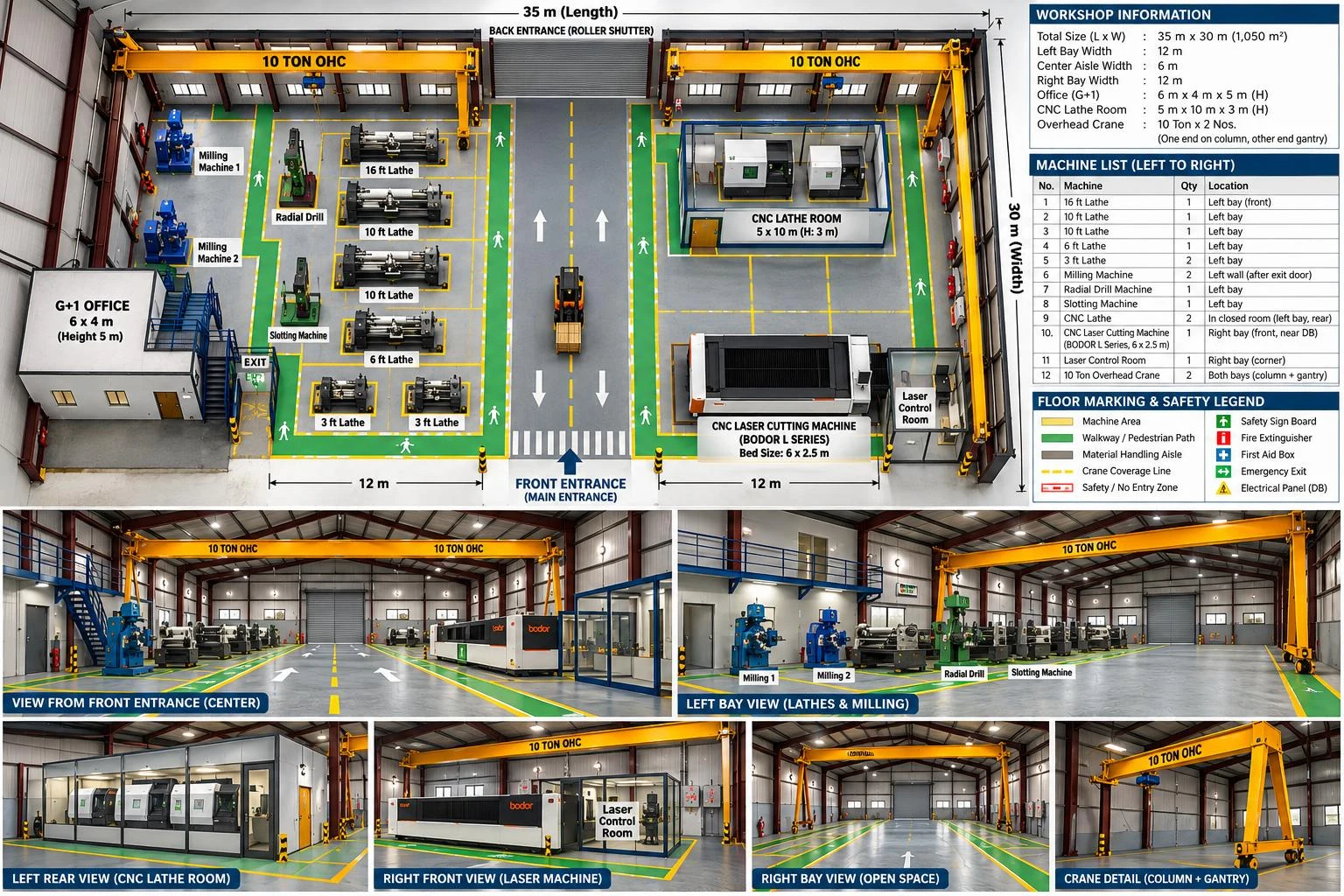

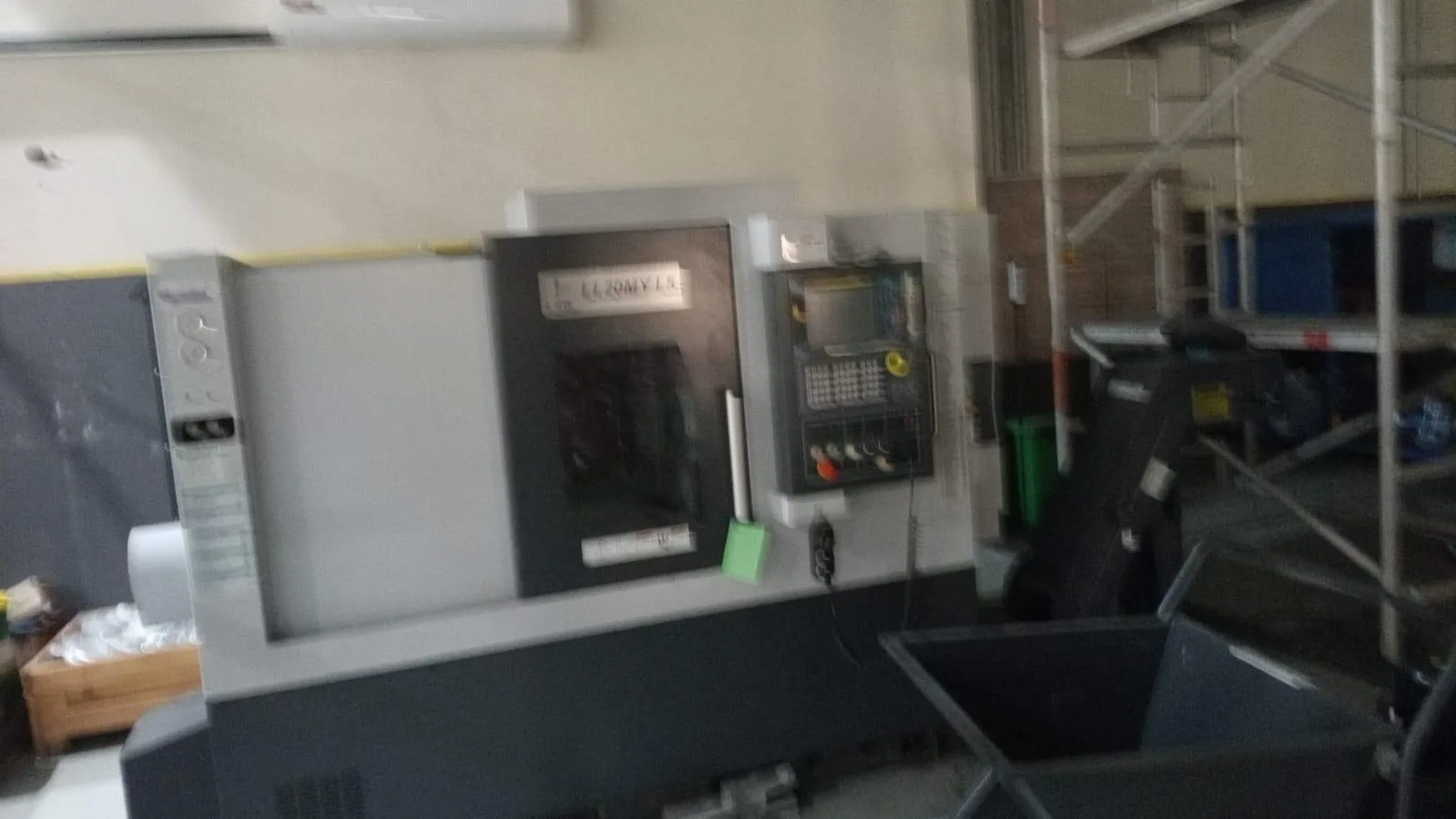

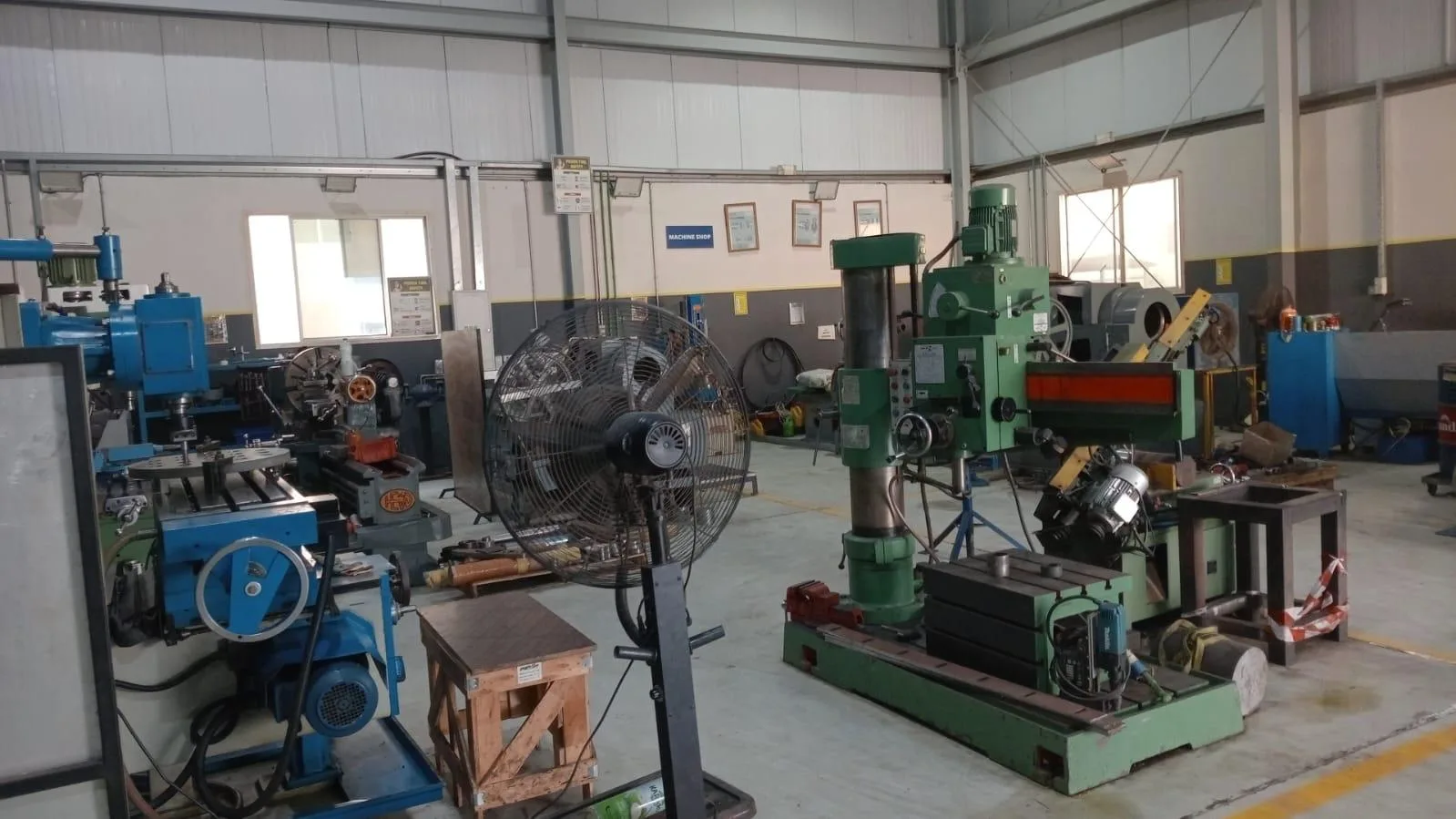

Workshop and machine-shop facilities, set up under the KOGAS-Tech partnership, with overhead cranes, a CNC lathe room and a CNC laser cutting machine.
